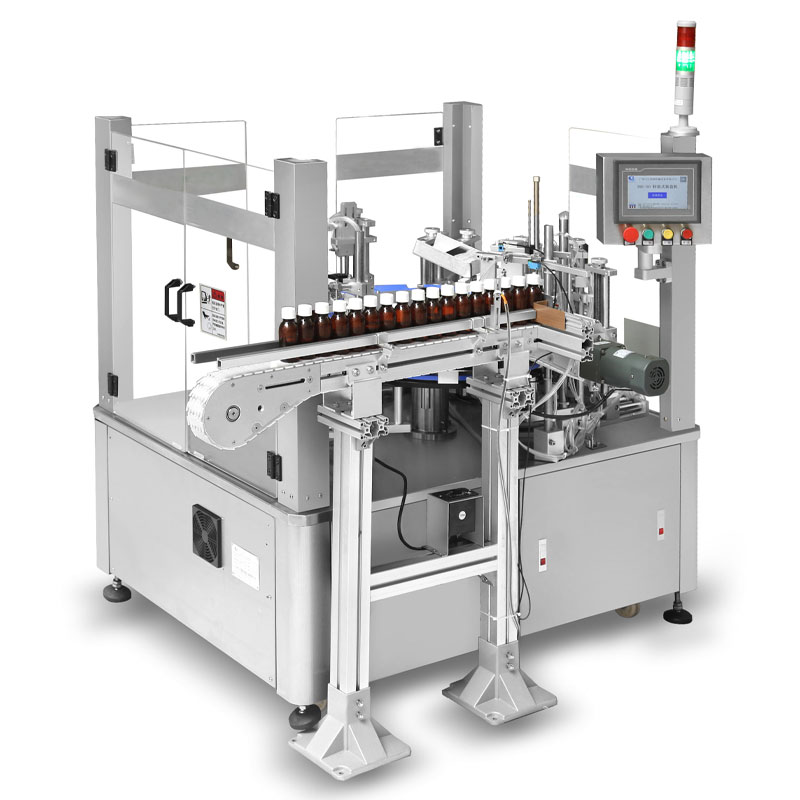

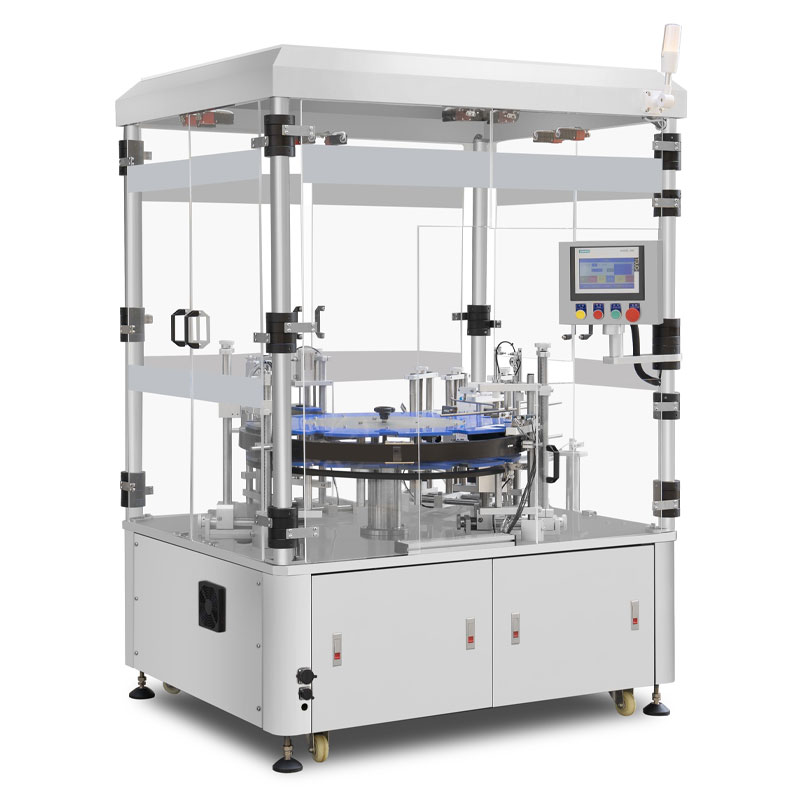

DL-ZH-50 Vertical Cartoning Machine

Vertical box packing machines are crucial for high-speed and efficient packaging processes, particularly when dealing with products that are better suited to a vertical packing orientation. Considerations when selecting a vertical box packing machine include the size and type of boxes, the nature of the products to be packed, and the desired production speed.

Features:

• Automatic detect of product & leaflet
• No Product, No leaflet & Carton
• Automatic reject carton if no leaflet
• Auto display trouble, alarm and output
• Auto product feeder according to sample
• Adopt human-machine operation system
• Simple design and low-cost maintenance
• Auto stop when machine overload
• Stable performance, convenient operation

Box Packing Machine Application:

• Individual package of commodity
• Connect with weight for packing candy
• Connect with tube filler for packing tube
• Connect with bottle filler for pack bottle

Here are some key components typically found in a vertical box packing machine:

1. Box Magazine: Similar to a carton magazine in a cartoning machine, a box magazine stores flat box blanks that are pulled from the magazine for the packing process.
2. Box Erector: The box erector is responsible for opening and forming the flat box blanks into three-dimensional boxes. This can be achieved using mechanical arms, suction cups, or other mechanisms.
3. Product Loading System: Products are loaded into the formed boxes. This can be accomplished through various mechanisms such as robotic arms, conveyor systems, or other feeding systems, depending on the characteristics of the product.
4. Box Sealing Mechanism: After the products are loaded, the box needs to be sealed. This can involve methods such as taping, gluing, or other sealing mechanisms depending on the design of the box and packaging requirements.
5. Coding and Marking: Some machines may include systems for coding or marking the boxes with information such as batch numbers, expiration dates, or other relevant details.
6. Leaflet or Instruction Manual Inserter:Similar to a cartoning machine, some box packing machines include a mechanism for inserting leaflets, instruction manuals, or other printed materials into the box along with the product.
7. Reject System:This system detects and removes any boxes that do not meet quality standards or have missing components.
8. Control System: The machine is equipped with a control system that manages the various functions of the box packing process. This can include settings for box size, product arrangement, and overall machine speed.
9. Cleaning and Changeover Features: To facilitate easy cleaning and changeover between different box sizes or products, these machines often include features that allow quick adjustments and access for maintenance.
10. Output Conveyor: After the boxes are filled, sealed, and possibly labeled or coded, they are conveyed to the next stage of the packaging process or for further handling.
