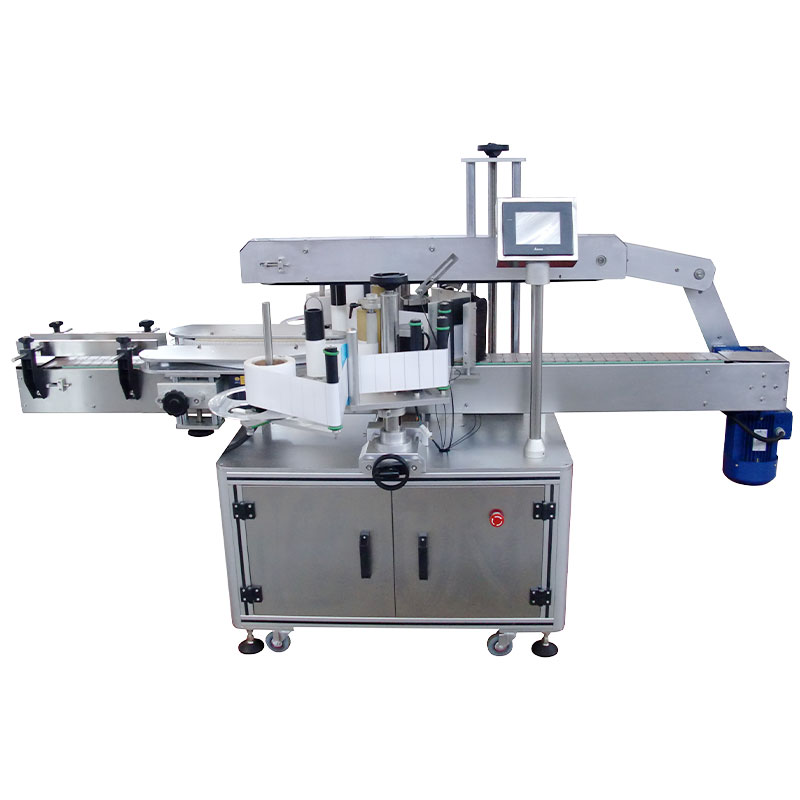

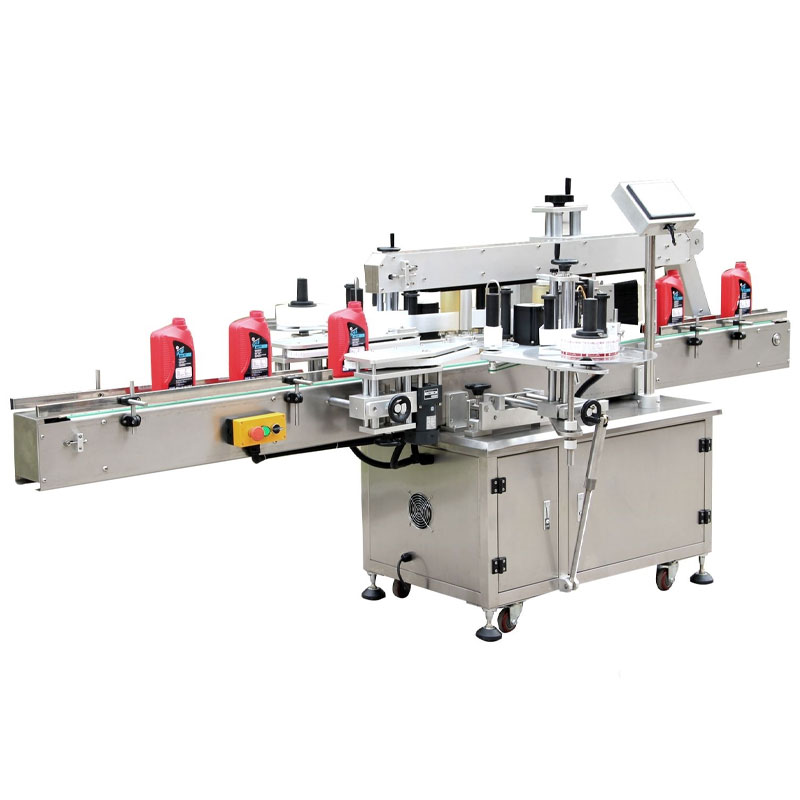

Two-Side Labeling Machine

Dolly two sides labeling machine is designed on the base of two sides labeling machine, to meet some of customer to meet the requirements of label two sides and round bottles. mostly applicable for square, flat bottles, round containers for medicine, daily chemical, food cultural supplies, electronic, etc.

  • Labeling Speed: 60-120pcs/min
  • Object Size: 30-280mm(H), 30-100mm(W)
  • Label Size:25-300mm(L), 20-180mm(W)
  • Roll Size:76mm(Inside), 300mm(Outside)
  • Labeling Precision: ±1mm
  • Bottle Material: Plastic, Glass, Metal, etc.
Category:

Two-sides labeling machine, also known as a double-sided labeling machine, can paste the two sticker labels on the bottle and control by PLC and touch screen. Double side labeling machine is the Multi-Function labeling machine, suitable for Flat, Oval, Square, Round bottles and etc. This machine is control by the servo motor drive in order to assure perfect label exact.

The whole double sided labeling machine adopts elaborate DIY design. By eliminating unnecessary complex and heavy machinery, it adopts suit type assembly. The maintenance and servicing can be completed without professionals. When it is necessary to replace the product, just make some simple adjustments, it can be immediately put online for production.

The two sides labeling machine is fully automatic, provided with such mechanism as bottle Piloting, bottle dispensing and labeling, and counting etc,is most suitable for use of small amount of various products or for operation of single machine and single person. The labeling position, height and angle can be adjusted. It can be connected by conveying belt with the production line.

Features

  • Automatic double sides oval bottle labelling machine plus round bottle.
  • Connect the filling and capping line with high speed.
  • Servo motor and PLC can assure the label exact.
  • Customer is easy to adjust the machine when changing the different bottle size, no need to change any parts.
  • The whole machine is made of S304 stainless steel and high class aluminum alloy using anodizing treatment.
  • The labeling head is driven by advanced stepping motor Imported from Japan.
  • All electric eyes are Japanese or German advanced photoelectric eyes.
  • PLC large-scale human machine interface control, allocated with 60 groups of memory units.

Advantages

  1. PLC and Touch Screen Control, automatically check the length of labels.
  2. Equipped with warning device of insufficient labels, broken labels.
  3. No bottle, no labeling.
  4. Automatic warning without labels.
  5. No Ribbon, automatic warning.
  6. Servo motor control, stable labeling.
  7. Perfect Label exact.
  8. Suitable for any kinds Bottles, Cans, Jars, etc.
  9. Customer can adjust the label angle according to the label position.
Send an email to us: info@dollypack.com, or request a quote to learn more about the most efficient packaging solution for you.

Specification

ParametersNumber Reference
ModelDL-LB-DS
NameDoule Sides Sticker Labeling Machine
Labeling Speed60-120pcs/min
Object Size30-280mm(H), 30-100mm(W)
Label Size25-300mm(L), 20-180mm(W)
Roll Size76mm(Inside), 300mm(Outside)
Labeling Precision±1mm
VoltageAC110/220V, 50/60Hz
Power2KW
Bottle FeederIncluded
Bottle MaterialPlastic, Glass, Metal, etc.
FunctionFront and Back Side Bottle Labeling
Machine DimensionL2400*W1450*H1360mm
Machine Weight500KGS
