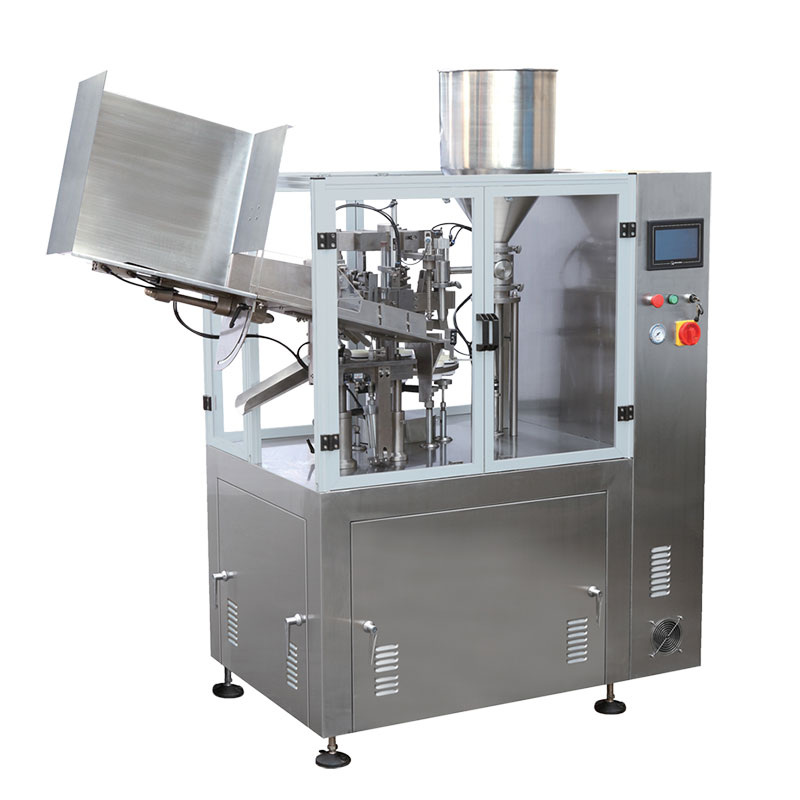

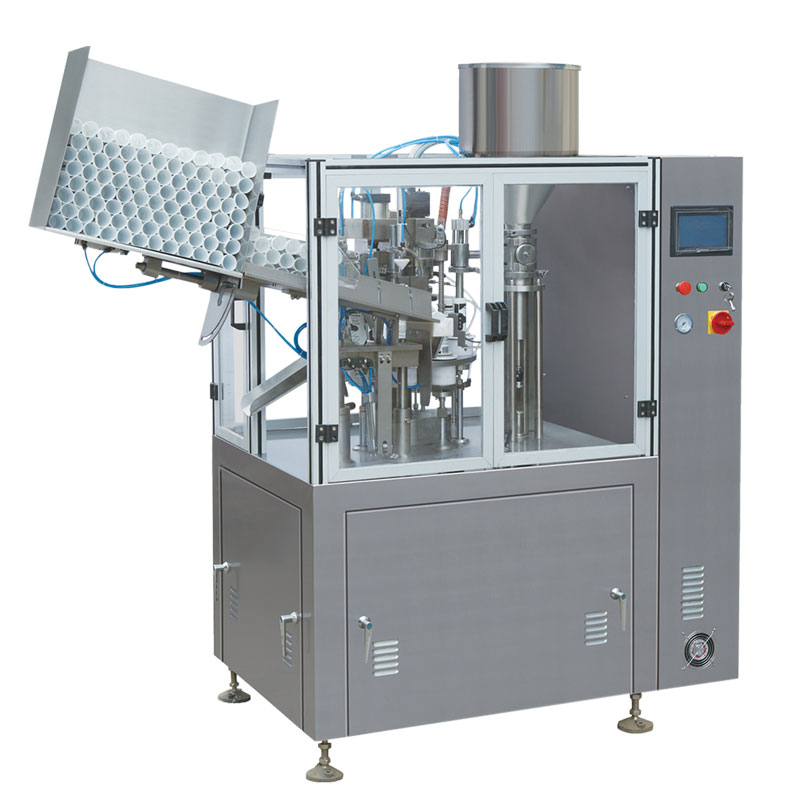

Automatic Tube Filling Sealing Machine is suitable for kinds of laminated tube, plastic tube and metal tube filling sealing cutting and date printing. It can fill cream/paste/viscosity products into tubes, and automatically finish the sealing cutting and date printing functions.
The machine usually used totally enclosed type protect cover, it is the idea filling sealing machine for plastic, laminated tube and metal tube, especially for medical and such a special industry.
The machine is featured with safety switch and auto-stop function. It is equipped with automatic pipe feeding and loading device, and the tube is automatically inserted into the positioning after sorted, tube locate, photoelectric sealing control etc. 16-1-position automatic rotation.
The control parts of the machine are composed of intelligent Man-computer interface, large touch screen display/operation control panel, including temperature setting, motor speed, filling speed, direct screen display and control. The components of the machine which touched the filling material are made of stainless steel SUS304 and SUS3 16L. Transparent cover is supplied with the machine.
During the process of tube-feeding and setting, filling and sealing, the ejecting are all auto manically controlled and no tube no tube no filling design. Digital count device is installed at the low front part of the machine. During filing process the filling head is put inside the material, blow-off device is installed to ensure a complete sealing. Many choices of sealing type are available to meet different need of clients.
Key Benefits
- Color touch screen is convenient to control and all the operation condition is clear at a glance.
- Tilted feeding box provide a convenient facility for tube filling. There is to adjust an accessory only when the product is changed for another size.
- Mechanical tube feeding, tube is pressed into the holes of working dishes. Which is stable and reliable. There is to adjust an accessory only when the product is changed for another size.
- Simultaneous positive pressure clean and negative pressure dust absorption system with longer cleaning time obtain an even through cleaning result
- The precision rate of mechanical linking view correction system is within 0.2mm.
- Unique serve control, the filling can be adjusted freely by the touch screen.
- Plug-in type trailing feeding start from the bottom of the tube to prevent air form mixing with cream and reduce the possibility of product oxidation. Thus the quality of product can be ensured.
- It can rapid heating by three-layer jacket and film outside the tube.
- Quick-replace type multi-function nip may perform vertical, circular and abnormal end sealing. The number of batch can printing both single and double side and convenient to change.
- Fast key, single and double-sided printing of document number.
- The smooth surface of machine has no dead angle and easy for cleaning. The materials completely contact with stainless steel and comply with GMP standard.
