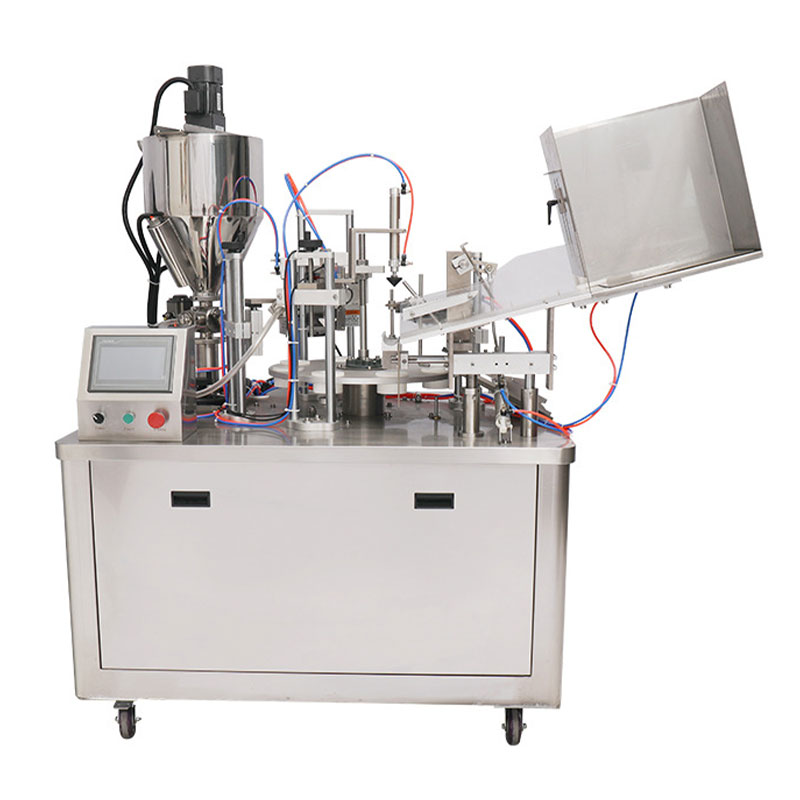

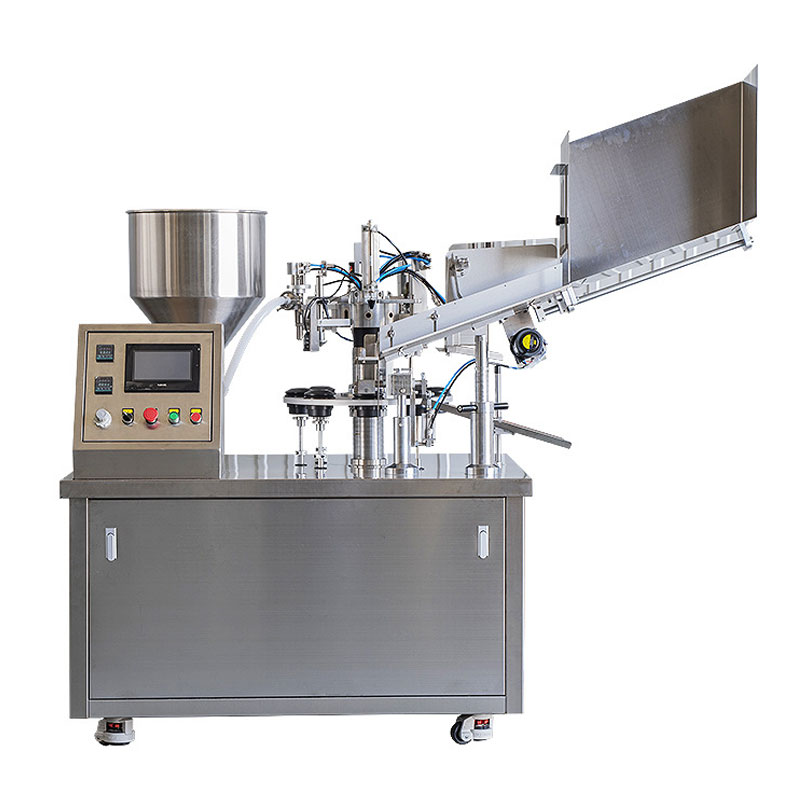

Automatic tube filling and sealing machine is designed for filling cream material into plastic or aluminum tubes and finish sealing process. The equipment model is fully enclosed in stainless steel, with variable frequency speed regulation.
Applications of Tube Filler and Sealer
This automatic tube packing machine is widely used in pharmaceutical, cosmetic, food and chemical industries. It is applicable in various aluminum plastic compound soft tube or plastic soft tube which fill various kinds of materials such as ointment, adhesives, AB glue, neoprene, epoxy glue, skin cream, hair cream, oil, toothpaste, lotions, cream, and others.
Automatic tube filling machines are designs for easy control. Production places of products, easy control is so important. Also after send the machines we support with installation, spare parts and services, after supports are so important also for machines.
Features:
- Tube types: Plastic/Laminated/Metal Tube Filling and Sealing.
- Touch Screen Control Panel, PLC Control System.
- Variable Speed Converter—control production speed.
- Auto tube loading, tube washing, positioning, filling, sealing and ejecting.
- Tube loading and tube washing are done pneumatically.
- Rugged design, durable, easy to operate, and simple maintenance.
- Tube positioning is controlled by Germany Photoelectric Sensor.
- Equipped with Temperature Control and Separate Cooling System.
- No Tube, No Fill — Alarm will go off!
- Bottom-up filling with shut-off nozzle to ensure accurate clean filling.
- Adjustments and cleaning without tools.
- Safety Production and Overload Protection Features are included.
- Automatic detection of tube direction inversion, can accurately detect an inverted tube.
- Stainless Steel Construction – All contact parts with material are high quality 316L stainless steel to meet GMP standard.
How Automatic Tube Filling Machine Works?
- Tube Loading: Empty tubes are loaded into a magazine or hopper, which feeds them into the machine in an organized manner.
- Orientation and Alignment: The machine orients and aligns the tubes to ensure they are in the correct position for the filling process. This may involve sensors and mechanical guides.
- Filling: The filling station is equipped with a precise dosing system that dispenses the predetermined amount of product into each tube. The filling process is typically controlled by electronic sensors to ensure accuracy.
- Sealing: After filling, the tubes move to the sealing station. Automatic tube filling machines use various sealing methods, including heat sealing, ultrasonic sealing, or other techniques, depending on the machine’s design and the type of tube material. The sealing process creates a secure and airtight seal.
- Coding/Marking (Optional): Some machines include a coding or marking station where information such as batch numbers, expiration dates, or product codes is imprinted on the tube. This step is often automated for accuracy and efficiency.
- Trimming (Optional): In some machines, there may be a trimming mechanism to remove excess material from the sealed end of the tube, ensuring a clean and professional appearance.
