Pillow bag packing machine is commonly used for irregularly shaped products or those with adhesive properties, such as industrial parts, clay, and more. Unlike traditional pillow packaging, reverse packaging involves creating a concave shape on both sides of the packaging material, similar to the reverse of conventional pillow packaging. After conveying the product onto the packaging film, the product is wrapped by the film.
Horizontal Flow Filling Sealing Machine – HFFS Machine is ideal for suppliers of products that must be packaged individually. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The result is a tightly fitted flexible package with a horizontal back seal and end seal.

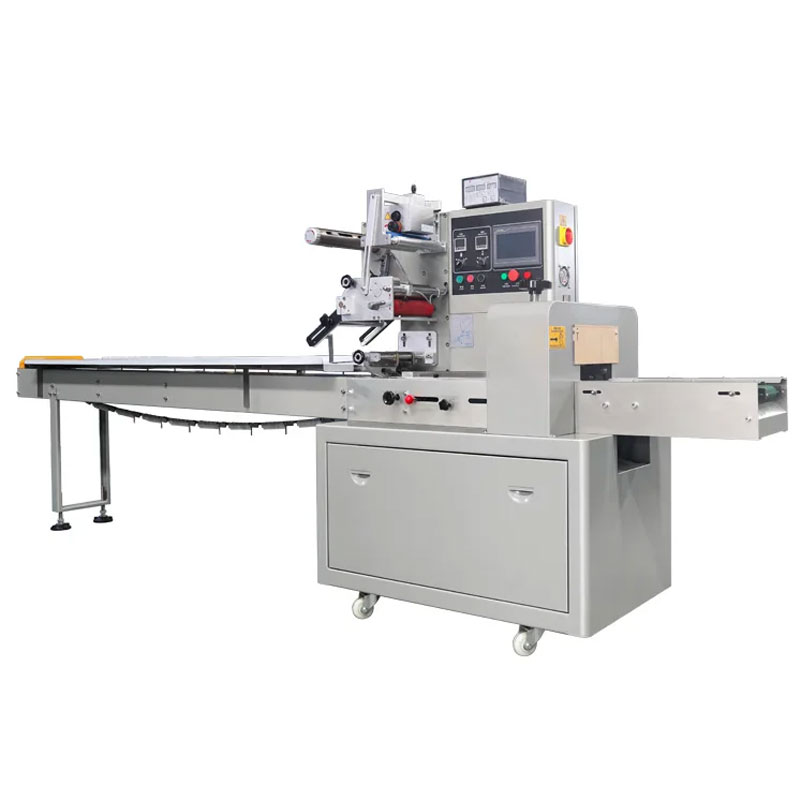

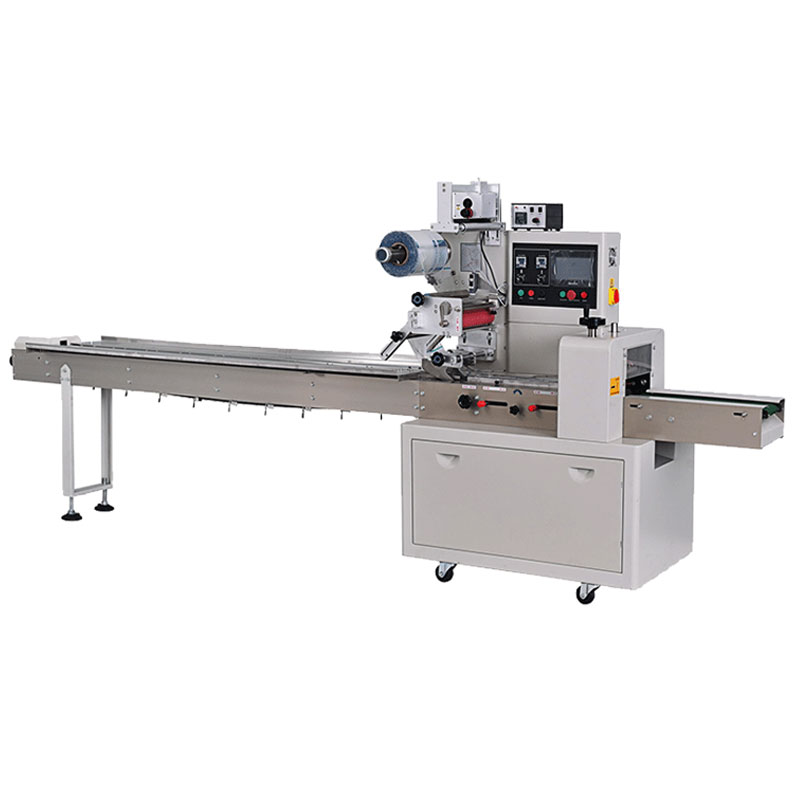

HFFS250 pillow bag packing machine is suitable for packing all kinds of regular products such as biscuits, chocolate, bread, instant noodles, moon cakes, medical supplies, daily necessities, industrial supplies, paper boxes, etc.
Packaging Material
For example single-layer heat sealing BOPP or composite film such as OPP composite PE, PET composite PEF
Advantages
- Sanitary machine design allows for easy clean-up.
- Compact machine body for smaller footprint.
- Intelligent control system with servo motors.
- Color mark tracking.
- Machine can easily be integrated with full line of automatic feeding system and other upstream or downstream equipment.
Features
- Simple System Structure: System is composed by servo motors, servo driver and touch screen. Servo driver is built-in motion control formula of packaging machine without any independent controller, all wiring is connector assembly. Performance of compact design, convenient maintaining and competitive price.
- Simple Operation:With intelligent control system of HMI, it gets simple parameters setting and adjustment.
- Big Bagging Size Range: Bag length can be set between a wide range via color mark tracking or bag length presetting. To set bag length is much easier and flexible.
- Shaftless Driving: Adopt shaftless driving technology, no mechanical joint, each shaft is controlled by servo motor with gear reducer.
- Auto-Shift Cutter: Cutter is running with variable shift, speed curve is generated automatically without manual adjustment, and save mechanical cams.
- Faster Line Speed: line speed is up to 50m/min., long package can be packed faster.
- Faster Packing Speed:With color mark tracking function, max. packing speed can be up to 200bags/min (Double jaws).
- High Accuracy of Color Mark Tracking: Color mark tracking accuracy is up to 0.1mm
- Packless Function:With this function, no matter in-feed products are continuous or intermittent, each package will be fed with product inside and no empty bag, so as to reduce loss of film material.
- Cutless Function: With this function, if sensor detects any product is out of position inside film, cutter will stop and restart until this product is discharged.
- Film Splicer:Finished film roll will be spliced new film roll automatically by film splicer without machine stop, so as to save operation time and labor.
- Cutter Torque Protection: System detects stress condition of cutter automatically. When hard product is being cutted, resistance is bigger than preset value of torque protection, cutter will stop immediately and run backward, machine can be restarted until this cutting product is discharged without restoration. Value of torque protection is set via touch screen.
- Customizable Special Function:Machine can be modified according to customer’s requirement. The whole machine is applied with multiple safety protection devices, which can be equipped with various automatic feeding system.
