Dolly is one of the coffee capsule filling packaging machines manufacturing factories. Help you build a high-quality production line from scratch and expand your production capabilities faster.

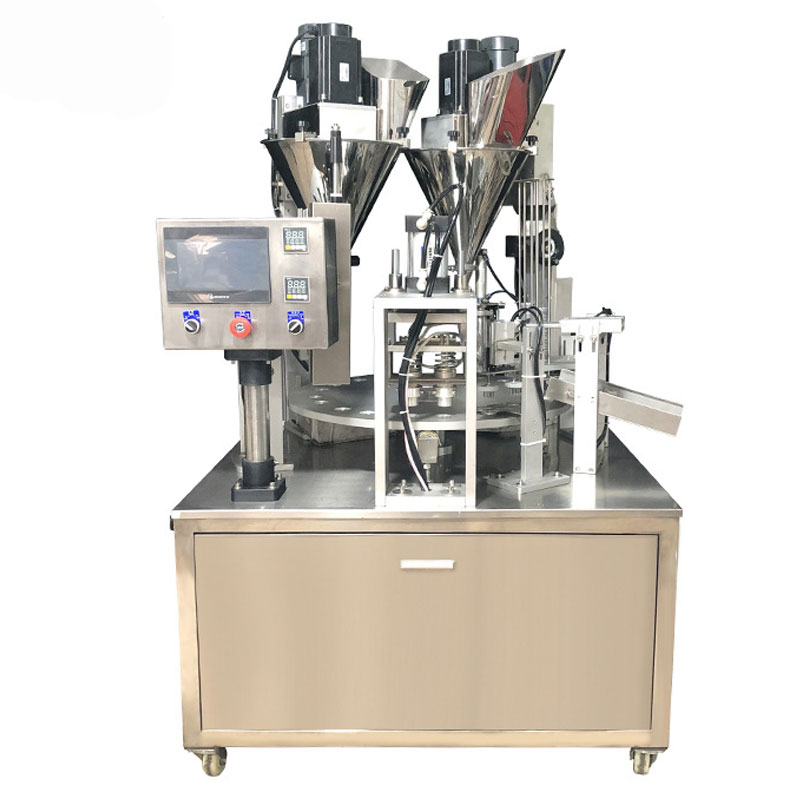

This coffee capsule filling machine uses the Japanese ohm long programmable logic controller, pneumatic control element, intelligent digital display temperature control system, with the features of high sealing strength, good sealing performance, low failure rate and small floor space.
We now have a range of filling and packaging machines for Nespresso, k cups, lavazza, dolce gusto, etc., with fast, stable customization capabilities.

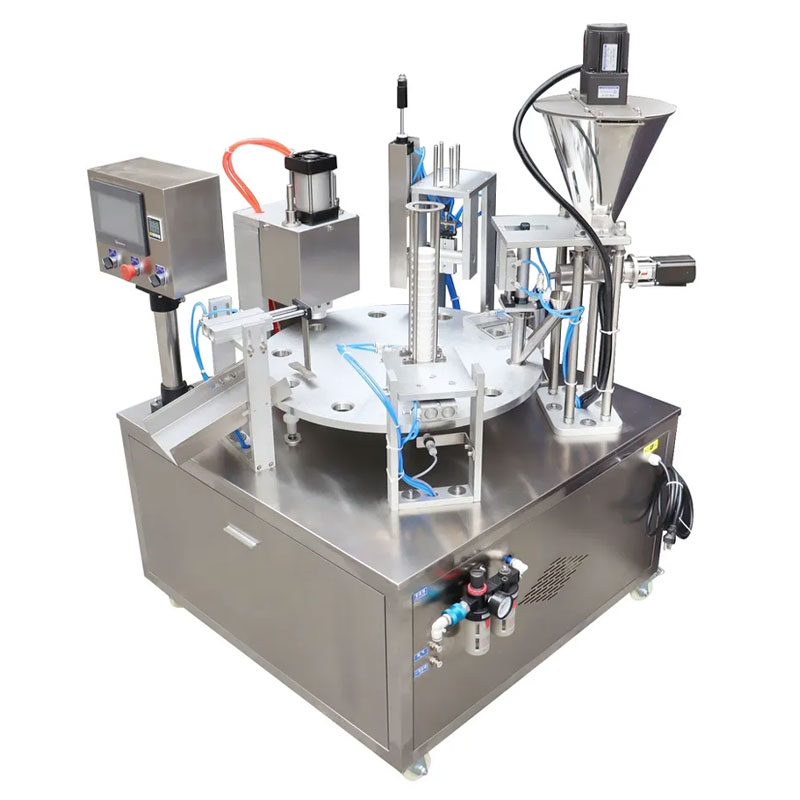

This coffee capsule filling and sealing machine has a rotating machine, small footprint, fast speed, and stability. It can fill 1600 capsules per hour at the fastest. It can fill a variety of cups, as long as Changing the machine mold can be completed within 30 minutes. Servo control spiral canning, canning accuracy can reach ±0.1g. With the function of diluting, the residual oxygen of the product can reach 5%, which can extend the shelf life of coffee.
This machine is a device that fills coffee powder into capsule cups and then seals them. Its whole process is high-speed, fully automatic filling and sealing. From dropping the cup, filling, filming, coding, and cup output are all automatic operations. The communion cup filling sealing machine is not only suitable for liquid filling, but it is also suitable for paste, powder filling, and sealing. This coffee capsule generally uses with a plastic cup thermoplastic machine. Filling volume, filling speed, etc. can be adjusted according to filling requirements.
Machine Characteristics
- Stable, reliable, safe, with alarm function.
- Variable frequency control, the filling time can be adjustable.
- The configuration elements adopt the international famous brand.
- High filling accuracy, suitable for all kinds of cups.
- Alarm and shutdown when gas supply is low.
- Easy to clean and maintenance.
- Digital screen display with numerical setting and flexible operation.
- Imported PLC control system and color touching screen, easy operation.
- Imported film driving system and color sensor enable accurate position.
- PID independent control of temperature, more suitable for different packaging material.
- Multiple automatic alarming functions, maximum deduction the loss.
- Dual encoders enable more stable performance.
Work Process
- Coffee Capsule Cups Loading: Capsules stack together, loading one by one, pneumatic type.
- Nitrogen Flushing: Flush nitrogen into empty coffee capsules.
- Coffee Filling & Pressing:Accuracy error +/- 0.1 grams, vertical screw filling type, volume can be adjusted, all parts contact with coffee are made of SUS-304.
- Foil Lid Loading: Pick and place foil lid on filled coffee capsules.
- Sealing:Copper sealing heads, temperature can be adjusted, pneumatic sealing type.
- Finished Cups Drop: Finished cups automatic drop down, can be built to other type.
