Labeling machines, also known as automatic/fully automatic labeling systems or applicator systems are complete solutions for all industrial labeling tasks.

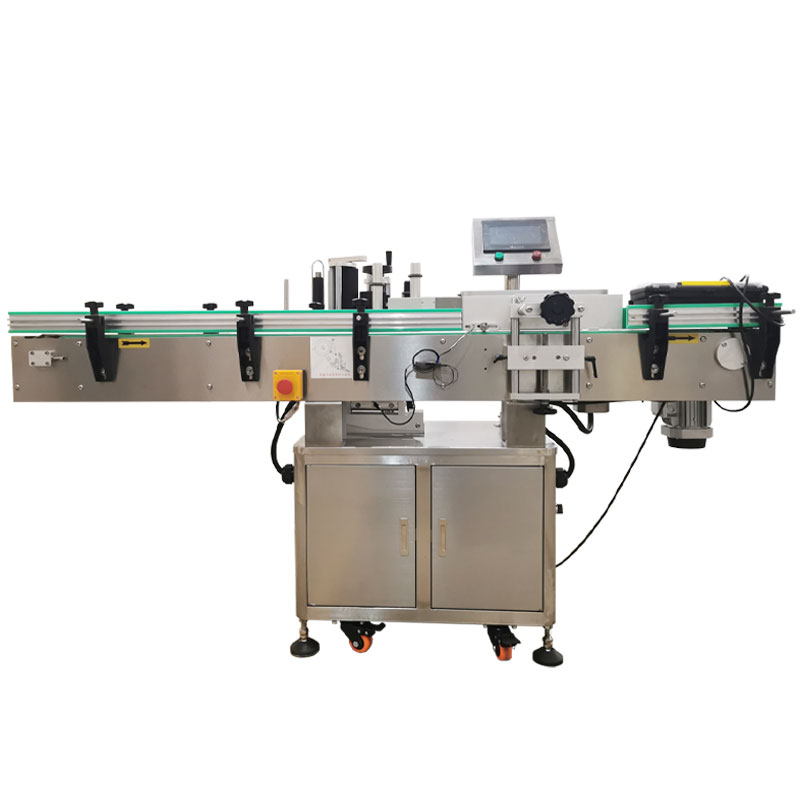

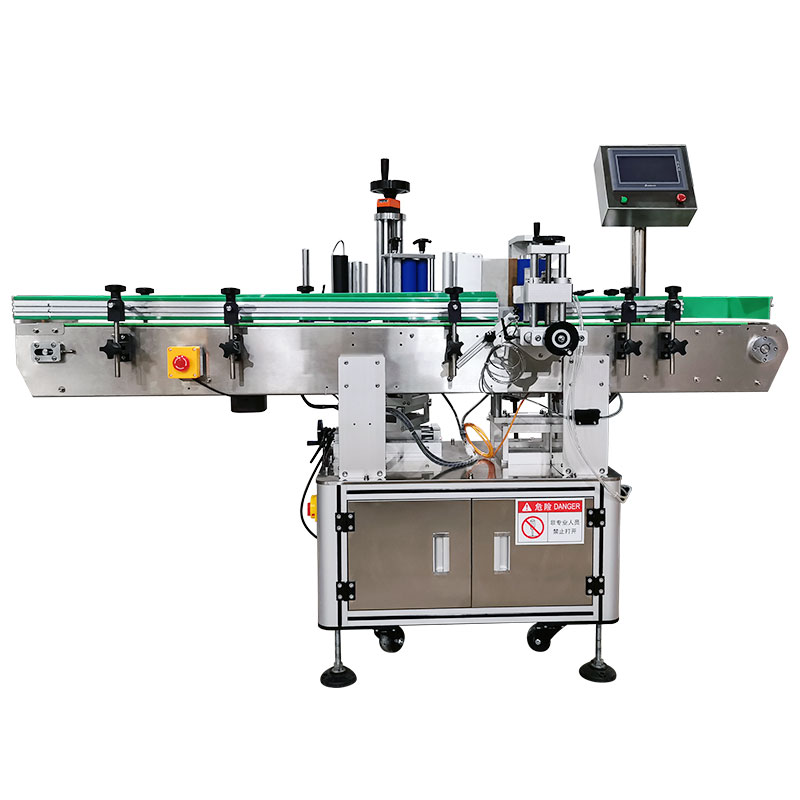

Automatic round bottle labeling machine also called vertical labeling machine, it is application for labelling a range of round bottles. DL-LB-RB is Automatic Sticker Labeling Machine is one of the most users friendly machines. The machine is used for full/partial wrap around labeling on different size of round container. It is capable of labeling up to 80 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple to “No change parts required”.
The bottle sticker labeling machine is manufactured with accurate precision and sturdiness including a product transmission system, label dispenser unit, wrapping unit, programmable logic control panel, electric panel and other advanced features designed to deliver efficiency and effectiveness in the production process. All safety elements of the machine have been considered including covering of all the moving parts.
The conveying system is easily adjustable as per the product requirements. This system is also equipped with strong AC variable drive that delivers the required torque during operation. An innovative motorized system ensures a uniform distance from one product to the other. The makeup components of this equipment have been sourced from high quality manufacturers to guarantee durability and minimum maintenance.
Applications
Our bottle labeling machines are widely used in Pharma Syrup, Dry Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Phenol, Fruit Juice, Ready to Drink Juice, Cosmetics, Talcum Powder, Bleach Powder, Herbal Powder, Ayurveda Powder, Wine, Liquor, Electrical Components, Dental Products, Adhesive, Glue, Rubber Adhesive, Stationery, LIP Balm, Petroleum Jelly, Hair Developer, Hair Straightener, Hand Wash, Dish Wash, Hand Sanitizer, Cosmetic Lotion, Hair Wash, etc.
Advantages
- Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.
- Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.
- High precision-Accuracy from +-0.5-1mm. wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.
- High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
- Europe standard-The labeling machine is made according to CE standard, Taiwan technology.
Working Process of Round Bottles Labeling Machine
- Manually put bottles on conveyor or using a automatic bottle turntable and the bottles will be separated by bottle separator to keep the each bottle distance for guarantee the working stable.
- All the action are control by PLC, Automatic sense the bottle and labels, automatic apply the labels on the two sides of the bottles. And machine with function, no bottle no labeling, automatic warning if no label or lack of labels.
- After apply the labels on bottles, the label paste device will paste the labels to fasten the label on bottles.
- Then bottle go to next processing.
