Eye Drop Filling Capping Machine – Eye Dropper Bottles Filler Line

Posted on by admin

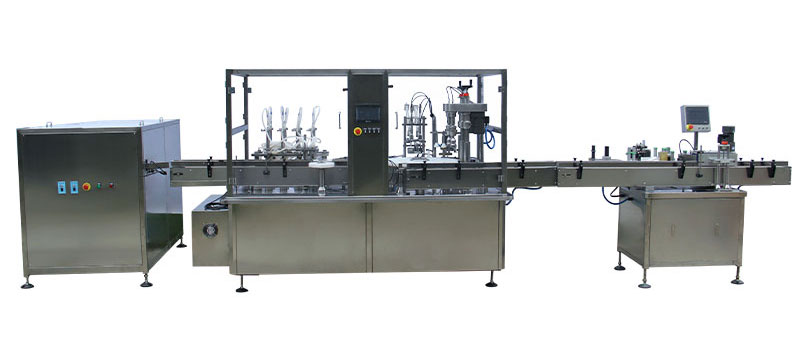

Dolly’s Eye Drop Filling Machine is crucial to the pharmaceutical industry and can complete procedures such as dropper bottle unscrambling, conveying, aseptic purified air bottle washing, filling, dropper tip feeding, dropper tip cap screwing, lamp inspection, labeling, cartoning, weighing and detecting, film wrapping, case packing and palletizing.

The entire filling production process is completed under the 100-grade laminar flow protection and aseptic isolation systems.  Isolation protection of each area ensures the aseptic production of eye drop products; while conforming to the most up-to-date GMP requirements. The aseptic eye drop filling line can also be applied to the production of other small-volume plastic bottle products. The production line adopts advanced internationally accepted technology in its structural principles and advanced in-house developed technologies. It has reached state-of-the-art levels of manufacturing easily replacing similarly imported products.

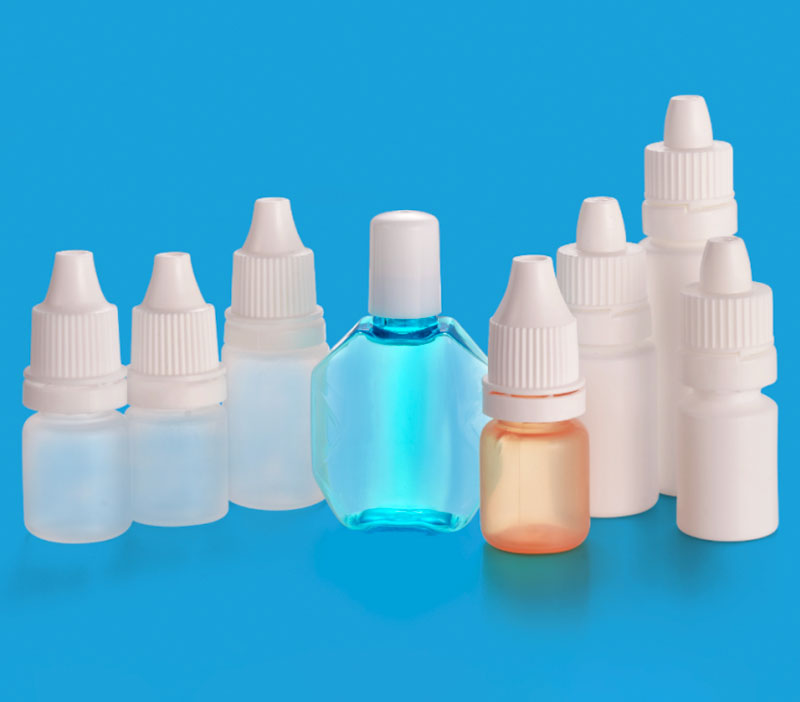

Eye Dropper Bottles

Eye Dropper Bottles includes

  • Dropper bottle
  • Dropper tip
  • Dropper tip cap
Pharmaceutical Eye Dropper Bottles are produced under cleanroom conditions.

  • Different volume ranges
  • White or natural dropper color
  • LDPE or HDPE bottle material
  • Push in drop dispenser
  • Tamper Evident Cap
Working Principle of Eye Drop Filling Line

The empty eye dropper bottles are transported by the conveying mechanism to the rotary table positioning mechanism of the filling machine. There is a station for air washing at the bottle inlet. After air washing is completed, dropper bottles enter the large rotary table and are subject to nitrogen flushing before filling. When the dropper bottles are detected by the bottle-feeding photocell, the filling and lifting mechanism is pushed downward, the filling nozzles are then inserted into the dropper bottles. And the whole pump body liquid feeding and filling head liquid discharging process is completed by the metering pump. After the filling is completed, the dropper bottles are subject to nitrogen flushing. The lifting mechanism is raised, and the rotary table moves the dropper bottles to the dropper tip placing station. The dropper tips are sucked up by the suction nozzles and driven by the cam to the top of the bottle mouth through circumferential movement (the bottle clamping station clamps the bottle mouth). The dropper tip is pressed downward into the bottle’s mouth. Then rotary table takes the bottle with the tip to the capping station, and the cap suction nozzle takes the cap to the top of the bottle mouth carrying out the pre-pressing. The rotary table takes the capped bottles to the cap screwing station, and the cap is tightened by the cap screwing head. The rotary table takes the bottles after caps are screwed out of the rotary table mechanism and sends them to the conveying mechanism, which sends the bottles to the next procedure.

Main Components of Aseptic Eye Drop Filling Line

  • Dropper bottle storage and automatic dropper bottle unscrambling system
  • Dropper bottle conveying and fallen bottle reject system
  • Static elimination and dropper bottle air washing system
  • Static elimination and dropper tip or cap air washing system
  • Peristaltic pump or ceramic pump filling system
  • Vacuum dropper tip picking and placing system
  • Dropper tip cap pick up and placing system
  • Pneumatic gripper and constant torque positioning system
  • Cap screwing system
  • 100-grade laminar flow aseptic protection system
  • Dust particles and airborne microbe detection system
  • Lamp inspection system
  • Labeling machine
  • Cartoning machine
  • Case packing machine, palletizer and other backend-of-line packaging equipment
Performance Features of Dropper Bottle Filling Machine

  • It adopts rotary or linear continuous bottle moving mechanism, which is stable, reliable, efficient, non-vulnerable with easy adjustment and centralized lubrication. It truly solves the defects of intermittent bottle moving machines found on the market such as instability, many parts susceptible to wear-and-tear, inertial impact, fallen bottles, being unable to enhance the production capacity, inconvenient adjustment, etc. (The full servo-driven models currently on the market are all intermittent bottle moving type, which cannot solve the design defects.)
  • Touch screen operation platform, PLC control, variable frequency speed control.
  • Integrating dropper bottle washing, filling, dropper tip placing and cap screwing, and taking small floor space, it is suitable for reconstruction of small workshops.
  • Rotary inverted bottle mouth bottle washing, rotary or linear continuous movement tracking filling, rotary dropper tip placing, rotary cap screwing, designed according to aseptic requirements by provided with 100-grade laminar flow protection, airborne microbe, and dust particle detection system, which fully conforms to GMP requirements.
  • Adopting peristaltic pump or ceramic pump filling principle, driven by servo motors. The filling volume can be conveniently and reliably adjusted on the HMI (human-machine interface), and it meets CIP/SIP cleaning and sterilization requirements.
  • Elimination of fallen bottles, no filling in case of no bottle, no dropper tip cap feeding in case of no dropper tip, alarm protection in case of no dropper tip or cap, effective protection, and synchronization of adjacent procedures.
  • Equipped with buffering liquid storage barrels and dropper tip and cap storage and supply hoppers, provided with automatic starting and stopping interlocking control.
  • Easy to operate, safe, and reliable.
Quick View

Filling Capping Machine

Liquid Bottle Filling Capping Machine

Benefits of Dolly’s Eye Drop Filling and Capping Machine

1. Refined Cutting-Edge Technology

  • The advanced PLC system realizes full-line automatic control and operation.
  • The design that the bottle surface is ultra-high from the table ensures that the laminar flow will not flow back into the bottle mouth. The shape of all parts on the table is designed to be easily cleaned without any dead corners. The functional stations of the equipment are completely operated under laminar flow protection, fully conforming to GMP requirements.
  • The automatic dropper bottle unscrambling mechanism adopts a curved design. Whether for round bottles or for flat bottles, the online unmanned operation can be achieved with high efficiency.
  • Aseptic purified air is used for air washing the dropper bottle, dropper tip, and cap. The ion wind eliminates static electricity attached to the dropper bottle, dropper tip, and cap. The air washing and bottle distributing device carries out air blowing on one way and back sucking on the other way, to ensure the cleanliness of the dropper bottle, dropper tip, and cap.
  • The advanced ceramic pump or peristaltic pump filling mechanism features a convenient and reliable disassembly, cleaning, and sterilization process. Servo motor is adopted for driving and touch screen for metering adjustment. The advanced dropper bottle distributing, bottle mouth clamping, and aligning device ensures that the filling nozzles are inserted into the bottle for filling without abnormal situations happening such as a bottle falling.
  • The integrated mechanism of the advanced mechanical hand vacuum dropper tip grabbing, tracking, positioning, and dropper tip feeding device, and the mechanical hand dropper tip cap grabbing, tracking, positioning, dropper tip cap feeding and cap screwing device ensure the machine runs stably and reliably. The air gripper-type cap screwing head is used for cap placing and cap screwing with adjustable torque, meeting the requirements of different dropper tip caps. The continuous rotary structure is adopted for dropper tip feeding and cap screwing to ensure production efficiency. It is provided with mature labeling, labeling, cartoning, wrapping, case packing, palletizing, and other automatic back-end-of-line packaging equipment.
  • The transmission components of the equipment are mainly gears and lever linkages of slow-stroke transmission, ensuring running stability and reliability of the equipment. The eye drop filling machine is almost noise-free.
  • Continuous dropper bottle moving is adopted with high production capacity without pauses.
  • The main electrical appliances, optoelectronic fiber, and pneumatic components are all imported brands.

2. Energy Efficient Effect

  • Unique design of dropper bottle unscrambling, dropper bottle washing, filling, dropper tip placing, capping and cap screwing multifunctional integrated machine. The production line takes small floor space, so as to greatly reduce the purification space and lower production and purification costs.
  • A large number of PLC control systems with mechanical, electrical, and pneumatic integration are applied during the equipment operation processes, so as to improve the stability of the equipment during operation, greatly enhancing product qualification rate, acquiring step-less speed control of the motor and greatly saving electric energy when working with the highly efficient energy-saving frequency converter. Parts with frictional movement between them are made of powder metallurgy, engineering plastics, and various high-grade materials. They are resistant to high temperature, and abrasion and have good self-lubricating performance, so as to effectively reduce the wear during the moving process and reduce the replacement of worn.
  • The equipment has a switching program, and the adjustment of specifications can be made by adjusting the height of the track, reducing the time for manual adjustment, cleaning, and replacement of specifications.
  • Low starting current, low starting torque, and high-power factor over the entire speed range.


3. Safe, Reliable, and Dependable Product

  • PLC control systems are applied with mechanical, electrical, and pneumatic integration. The operation is safe and reliable with a low failure rate and very-low running and maintenance costs.
  • With the automatic overload protection function, it automatically shuts down when any fault occurs. The faults of electrical parts are displayed on the HMI (human-machine interface).
  • The eye drop filler has a switching program, which can recognize the adjustment of specifications, avoid artificially polluting the operating environment of the equipment, and effectively conceive an aseptic operation.
  • Linear actions do not affect the class 100-grade laminar flow protection air and effectively realize the aseptic production process.
  • Rejection of fallen bottles, no filling in case of no dropper bottle, shutdown protection in case of no dropper bottle, waiting for automatic starting; no dropper tip cap feeding in case of no drop tip, reject of nonconforming products, weighing and detecting, counting and automatic interlocking protection of adjacent devices.
