Other MachinesCup Filling Machine
Widely used in plastic cups for beverages, milk, yogurt, dairy products, soy products, and other industries.
If you are looking to fill/seal preformed cups or trays, look to Dolly for a cup filling machine to meet your needs. With multiple filling and sealing options.
Consider Dolly for packaging products like cottage cheese, yogurt, cheese/butter spreads, whipped cream, ice cream, nuts, snacks, cereal, and more. Our cup filling and sealing machine solutions offer a range of capacity, footprint, and configuration options, with filling abilities from 600 up to 12000 cups/hour output.
Our cup filling machine solutions are suitable for a wide range of container types, including rounds and non-rounds, with various lane and configuration range options.

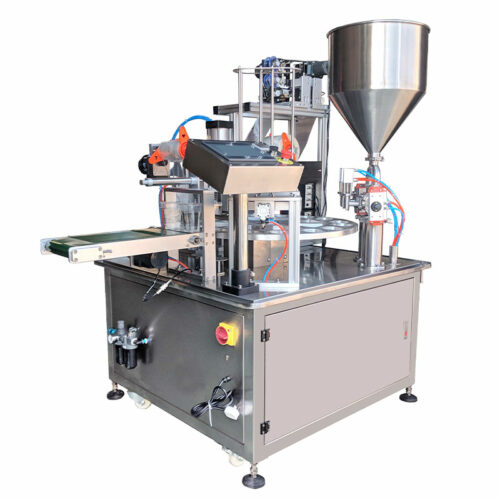

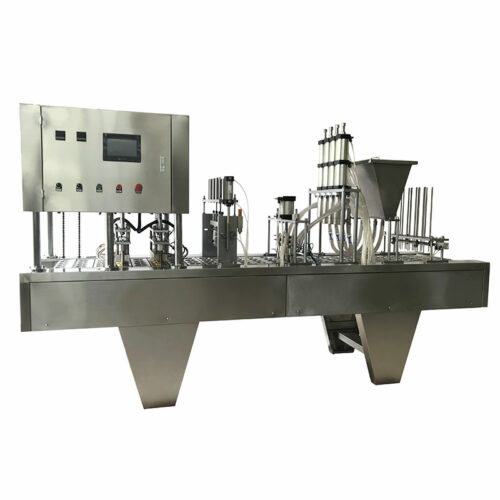

AUTOMATIC CUP FILLING MACHINE
Dolly provide high volume cup filling machines for many industries including food, dairy, and cosmetics. These machines are designed to fill, seal, lid, and eject your products.
Cup Filling Machine
Cup Filling Machine
| MODEL | DL-CFS-1 | DL-CFS-2 | DL-CFS-4 | DL-CFS-6 | DL-CFS-8 | DL-CFS-10 |
|---|---|---|---|---|---|---|
| Productivity | 800cups/h | 1600cups/h | 3000-4000cups/h | 5000-6000cups/h | 7000-8000cups/h | 9000-10000cups/h |
| Filling Nozzle | 1 Nozzle | 2 Nozzles | 4 Nozzles | 6 Nozzles | 8 Nozzles | 10 Nozzles |
| Cup Diameter | 30-120mm (Customized) | |||||
| Filling Accuracy | ±1% | |||||
| Filling Volume | 50-300ml (Customized) | |||||
| Voltage | 220V/380V/50Hz/60Hz | |||||
| Power | 1.5KW | 3KW | 3.5KW | 5KW | 6KW | 7.5KW |
| Gas Consumption | 0.45m³/min | 0.5m³/min | 0.6m³/min | 0.7m³/min | 0.8m³/min | 0.9m³/min |
| Machine Dimension (L*W*H) | 1250*1250*1650mm | 1250*1250*1650mm | 3300*710*1700mm | 3800*850*1700mm | 3800*710*1700mm | 4000*800*1700mm |
| Machine Weight | 250KGS | 250KGS | 700KGS | 800KGS | 1000KGS | 1200KGS |
| Other speeds and filling heads also can be customized. |
Get Your Project Started by Request a Quotation or Email us at: info@dollypack.com
Cup filling machine can auto loading the empty cups, empty cups detecting, auto quantitative filling product into cup, auto loading the aluminum foil seal lids, auto sealing cup, auto discharging the finish product. Base on different mold quantity, its capacity from 600-10000 cups per hour, suitable for the foods and beverage factory production needs.
Whole machine made by stainless steel 304 and anodizing aluminum, ensure it can running on bad food factory environment which has damp, steam, oil, acidity and salt etc. its body can accept the water rinsing clean. Using high quality imported electrical parts and pneumatic parts which ensure the stable running in long time, reduce the stop and maintenance time.
This cup filling sealing machine is made of stainless steel with easy equipment, it has been long tested and its performance gained a very high reputation from our clients because of its easy operation and smooth work in low failure rate. We can produce the machine under the customer’s special requirements. Machine suitable for beverage, such as soil bean, milk, fruit juice, mineral water. And it can automatically do cup setting, filling, photoelectric pattern proofread, sealing, printing date, cutting& discharging.
What Are You MAKING？
Cup filling and sealing machines are versatile pieces of equipment used in various industries for packaging products in pre-formed cups. These machines automate the process of filling cups with a product, such as liquids, semi-liquids, powders, or granules, and then sealing the cups to maintain product freshness. Here are some applications of cup filling and sealing machines:
1. Dairy Industry
Cup filling machines are commonly used in the dairy industry to package yogurt, pudding, custard, and other dairy products. The machines can handle different viscosities and ensure airtight sealing to preserve product quality.
2. Food and Beverage Industry
These machines are utilized for packaging a wide range of food and beverage products, including sauces, dressings, soups, stews, fruit salads, and desserts. The sealed cups help extend the shelf life of the products.
3. Snack Industry
Cup filling sealing systems are employed in packaging snacks such as fruit cups, pudding cups, jelly cups, and dips. The machines ensure accurate portion control and hygienic packaging.
4. Cosmetics and Personal Care Products
Cup packaging machines can be used to package cosmetic and personal care products, such as creams, lotions, gels, and hair care products, in convenient single-serving or sample-sized cups.
5. Pharmaceutical Industry
These machines find applications in the pharmaceutical industry for packaging oral medications, liquid supplements, and other pharmaceutical products in unit doses. The sealed cups help ensure product integrity and dosage accuracy.
6. Condiments and Sauces
Cup filler sealers are utilized for packaging condiments, sauces, and dressings in individual servings. This is common in restaurants, catering services, and takeaway establishments.
7. Pet Food Industry
Cup filling sealing machines are used to package wet pet food in individual servings. The sealed cups help maintain the freshness and quality of the pet food.
8. Medical and Healthcare Products
Cup filling and sealing machines can be employed to package medical and healthcare products, such as gels, ointments, and diagnostic reagents, in sterile and controlled environments.
9. Instant Coffee and Beverages
These machines are utilized in the coffee and beverage industry to package instant coffee, tea, and other powdered or granulated beverages in single-serving cups. The sealed cups preserve the flavor and aroma of the beverages.
10. Frozen Foods
Cup filler machines are used for packaging frozen foods, including individual portions of ice cream, frozen yogurt, and other frozen desserts. The sealing process helps prevent freezer burn and contamination.
11. Customized Packaging
Cup filling machines allow for customizable packaging designs and branding. Manufacturers can use different cup shapes, sizes, and materials to enhance product presentation and attract consumers.
